SRM-20 Compact Milling Machine Features
Produce More Prototypes with More Materials
The SRM-20 portable milling machine can mill a broad range of materials, including modeling wax, chemical wood, foam, acrylic, poly acetate, ABS and PC board. The following items are just some of the prototypes and applications made possible:
Product inventions
Wax molds for casting
Tools and machinery
Relief plaques and graphics
Wax molds for casting
Tools and machinery
Relief plaques and graphics
Milling Made Easy with a User-Friendly VPanel
The SRM-20’s VPanel controller provides a simple interface for adjusting tool position and moving the cursor to set the milling starting point. The VPanel also allows easy control of feed rate and spindle speed with pause and resume operation, plus tracking of X,Y,Z axis milling with a numeric readout in millimeters or inches.
Software Included for Out-of-the-Box Productivity
Available for download from Roland DG OnSupport, the following software offers user-friendly operation for all aspects of CNC milling on the SRM-20:
SRP Player
A user-friendly CAM software with advanced editing capabilities that lets users explore new milling capabilities as their skills progress. Supports popular CAD file formats like STL, DXF, Rhino 3D Model and IGES. Learn more
Modela Player 4
MODELA Player 4
Easy-to-use CAM software that processes STL files produced by popular CAD programs. Features include uniform 3D scaling, selection of milling direction, automatic tool path generation, and control of cutting depths and speeds from a predefined library or user-defined setting. Learn more
iModela Creator
iModela Creator
Use drawing tools to sketch out ideas before milling shapes, holes, textures and patterns. Then simply load your cutting material into the mill, and the SRM-20 does the rest, recreating your design in precise detail.
Virtual MODELA
Virtual MODELA
A powerful software tool that eliminates milling errors, simulates finished shapes and estimates production time.
ClickMill
ClickMill
Software to directly control surfacing, drilling holes, cutting pockets and other finishing processes on the SRM-20, all without accessing CAD or CAM software.
SFEdit2
SFEdit2
Convert any standard TrueType or Outline font into a ‘Stroke Font’ or single line font for engraving.

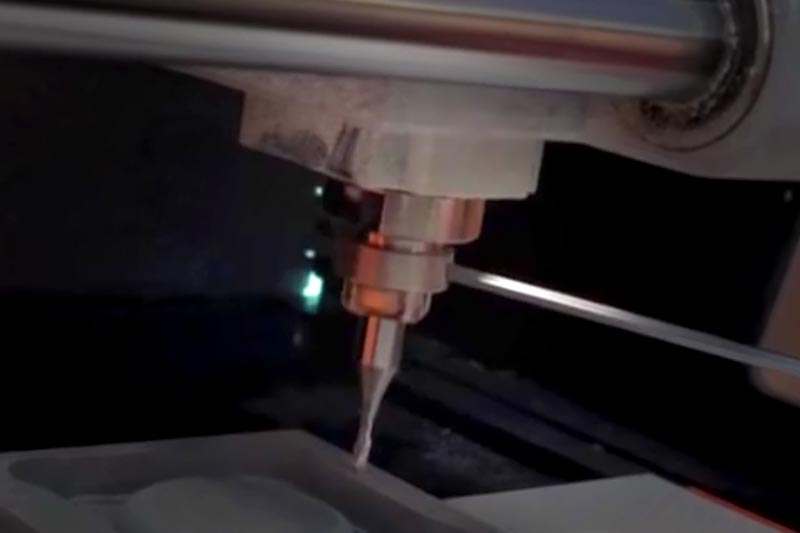

Independent Collet System for Efficient Milling
It’s no longer necessary to change spindles every time there’s a different end mill shank diameter. Now you can replace the collet chuck in order to match the shank diameter for fast setting of the Z-axis base point and for quick tool changes.

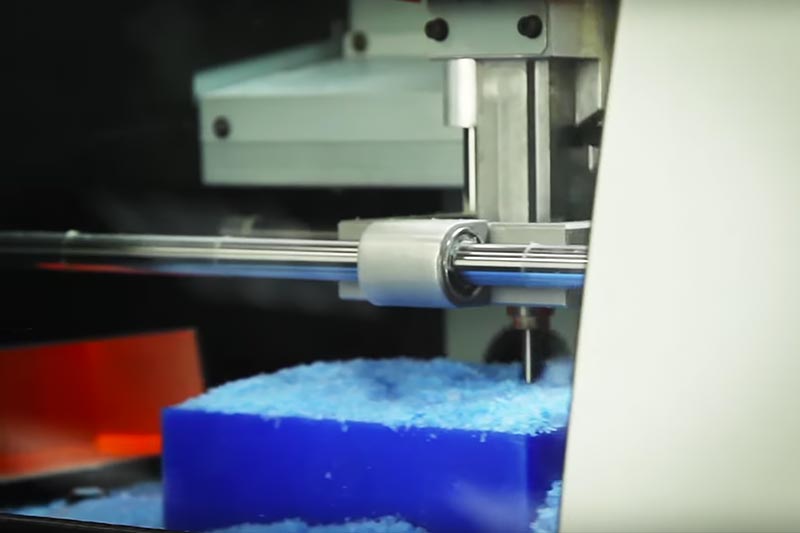

The Clean Machine
The SRM-20 has a fully-enclosed cabinet that reduces dust and noise and features a side-window for easy progress viewing. It also features an intelligent safety interlock to that automatically pauses the machine when the cover is opened, permitting milling to resume upon closing the cover and selecting “continue”.

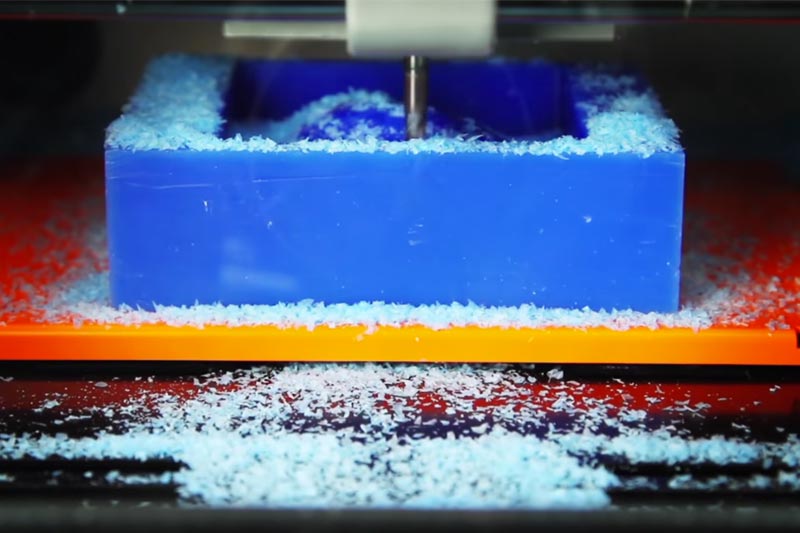

Smart Yet Rugged
The SRM-20 includes the very latest CNC milling features such as airtight sealing technology to prevent waste material from getting inside the spindle and Y-axis, making it resistant to the effects of milling debris and adding durability for long-term operation.
The Power of SRM-20 in Education
The SRM-20 is perfect for any classroom and offers students the chance to experience cutting-edge technology in preparation for careers in the design, technology and engineering industries. The SRM-20 empowers students to engineer and output intricate proof-of-concepts, parts and scale models, and has become an invaluable yet affordable option for STEM and STEAM educators to put advanced prototyping technology in their classrooms.
<Download Education Solutions Brochure>
<Download Education Solutions Brochure>
Unmatched Reliability and Technical Support
In addition to highly reliable technology and unmatched customer support, Roland DGA offers a one-year manufacturer’s warranty on the SRM-20. Roland DG OnSupport® is also included, giving you access to the latest manuals, drivers, software downloads and updates.
