Benchtop UV Flatbed
Direct-to-Object Printing at its Finest

VersaOBJECTNEW MO-240 Direct-to-Object Printer

Take your business to new heights with the VersaOBJECT MO-240. Incredibly advanced yet easy to use, this state-of-the-art UV flatbed enables you to grow your business and enter lucrative new markets by providing:

  • Unsurpassed Image Quality: Reproduce complex graphics – even the most detailed designs and text – with amazing color vibrancy and accuracy.
  • Outstanding Productivity: Maximize your capabilities with a state-of-the-art UV device uniquely designed to streamline workflow, maximize output, and increase profits.
  • Greater Versatility: Print on a vast array of substrates and three-dimensional objects up to 8” thick, including cylindrical items with the optional Rotary Rack attachment.
  • Intuitive Interface: A 7-inch color touchscreen control and feature-filled, user-friendly VersaWorks 6 software make operation simple.

Faster, More Beautiful, More Versatile

Deliver high-quality vibrant and impactful graphics onto a vast range of objects and substrates, including metal, plastic, glass, wood, canvas, vinyl, paper and much more besides, accommodating material up to 8.03 inches height.

versaobjectmosynth
Control Panels
For everything from custom electronics to industrial units, flatbed UV printing provides unprecedented options for customisation on a wide variety of substrates.
versaobjectmofxpedal
Electronic Items
Unlock a lucrative new line of unique products, individually customized according to customers' tastes, with the ability to print vibrant graphics and even 3D gloss details.
versaobjectmophone
Phone Cases
Flatbed UV printing is the perfect choice for customizing phone cases of all kinds from rugged, shock-proof cases to folding leather cases.
versaobjectmonameplat
Nameplates
UV flatbed printing gives producers the option to individually customize plates and labels using a full digital printing process, or as part of a hybrid printing system.
versaobjectmobag
Cases and Containers
With over 200 mm of clearance between the print head and the printing bed, you can print graphics and branding directly onto cases, boxes and containers.
versaobjectmokeypad
Keypads
UV printing is an excellent choice for producing a wide variety of keypads and membrane switches, offering much greater flexibility than analogue printing methods.
versaobjectmosign
Signage
The VersaOBJECT MO-240 lets users print onto flat media up to A2 size made from glass, metal, plastic, wood and more.
versaobjectmobottle
Bottles and Flasks
Thanks to Distance printing mode, bottles and flasks can easily be customized in large batches, or an optional rotary printing unit can be added, allowing users to print around the entire cylinder.
versaobjectmogolfball
Golf Balls
Distance printing mode lets users print directly onto spherical items like golf balls with ease and produces crisp and vibrant print results.
versaobjectmoglasssign
Trophies and Glass
Thanks to its excellent substrate compatibility and ability to print text and fine details with remarkable accuracy, UV printing is a perfect solution for producing custom trophies, awards and medals.
versaobjectmoheadphones
Custom Products
Compared with more restrictive analogue processes like screen and pad printing, flatbed UV printing offers excellent flexibility when customizing entire products or components.

Everything You Need to Succeed

UV DTF

UV DTF with MO-240

With the MO-240, you can print UV DTF decals for transferring detailed designs onto various surfaces* and shapes without weeding. UV DTF is ideal for customizing products like phone cases, water bottles, mugs, leather goods and promotional items with photos, text and logos.

* Testing is recommended for each material that graphics will be applied to. Items with graphic transfers should be washed by hand, as machine washing is known to reduce adhesion.

Get started in UV DTF with a trusted solution by pairing the MO-240 with our Graphic Transfer System print sheets and transfer film.

Buy Now on the Roland DGA Store
versaobjectmohighdefinitionmob

High-Definition Print and Accurate Color

The pinpoint accuracy of the MO-240’s newly developed printhead, combined with an expanded inkset, allow for detailed text and stunning image quality. Newly added Orange and Red inks extend the achievable gamut, enabling you to achieve colors that previously could not be accurately reproduced.

Whether you need vibrant colors, high-opacity White ink, or the ability to print unique textures and dimensional effects, the MO-240 UV printer is the answer.

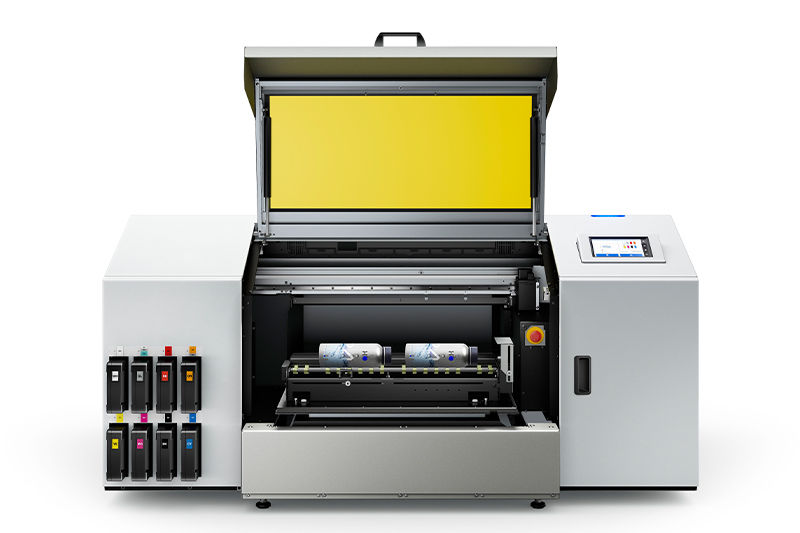

versaobjectmohighproductivitymob

High Productivity

The MO-240 is engineered to deliver high productivity with print speeds up to 1.4 times faster than comparable models from other brands. The staggered printhead configuration, powerful UV lamps, and increased bed size deliver printing speeds of up to 25.71 ft2/hr in standard mode, enabling you to get more done in less time. Increased White ink density lets you print White twice as fast as previous models and Gloss ink can now be printed in thicker layers, doubling the speed.

Improvements to the setup process simplify the changing over of products and fixtures, increasing efficiency and profitability. Updates made to the included software enable operators to maximize productivity, while also allowing for greater versatility and ease of use.

versaobjectmoflexibilitymob

Greater Flexibility

Roland DG's EUV5 ink is renowned for its broad material compatibility and excellent adhesion. With just one ink formulation, you can print onto a variety of substrates, increasing your ability to adapt to changing market demands.

The MO-240 also allows you to go beyond flat substrates thanks to built-in technologies including ‘distance mode’ printing and optional extras such as the rotary printing unit. With these features you can go even further with direct printing and move towards new opportunities.

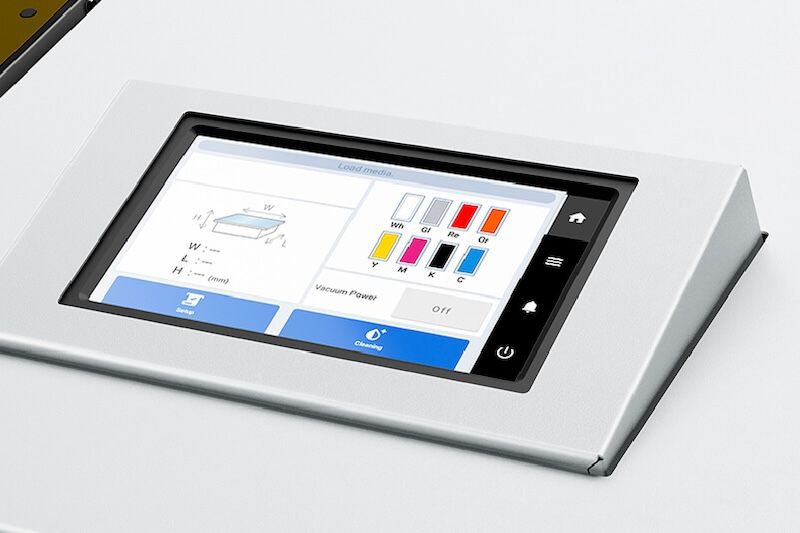

versaobjectmotouchmob

Excellent Usability

Roland DG has designed the MO-240 for easy installation and setup as well as unmatched ease of use. The 7-inch full-color touchscreen guides the user through everyday use with a combination of simple-to-follow text and graphic displays, while the intuitive VersaWorks 6 RIP software provides a host of tools and features that help maximize productivity, efficiency, and convenience.

Access to the Roland DG Connect monitoring app provides real-time data about your print workflow, allowing you to optimize operations, improve profitability, and effectively schedule any necessary maintenance.

Highlighted Features

Cutting-Edge Printhead Technology

Cutting-Edge Printhead Technology

The MO-240’s newly designed staggered printhead delivers exceptional print quality at speeds that double productivity.

Powerful UV Lamps

Powerful UV Lamps

Newly developed UV lamps – twice as powerful than conventional lamps – cure the inks instantly for optimum productivity.

Vacuum Bed

Vacuum Bed

The MO-240 comes with a vacuum bed as standard, which lets you print on a wider range of substrates including materials that are thinner, more flexible, and lighter in weight.

High Quality and Versatile ink

Using the latest ECO-UV EUV5 inks for exceptional and premium-value printing, we go beyond CMYK to give you even more options and flexibility. Talk to a Roland DG expert about your print requirements to discover the ink configuration that’s right for you.



CMYK

Get stunning image quality and color gamut with the EUV5 ink

Gloss

Create textures and embossing for eye catching graphics

White

The improved opacity of the white ink brings details to the surface of the images and accentuates colors and contrasts

Red and Orange

These new ink sets expands the color gamut of the MO-240 and allow it to reach colors that were never possible previously

Primer

The new Primer Ink allows the MO-240 to print on substrates that we could not be considered previously

GREENGUARD Certified

GREENGUARD Gold

ECO-UV5 inks are GREENGUARD Gold certified, meaning they meet strict standards of low chemical emissions making them ideal for indoor applications.

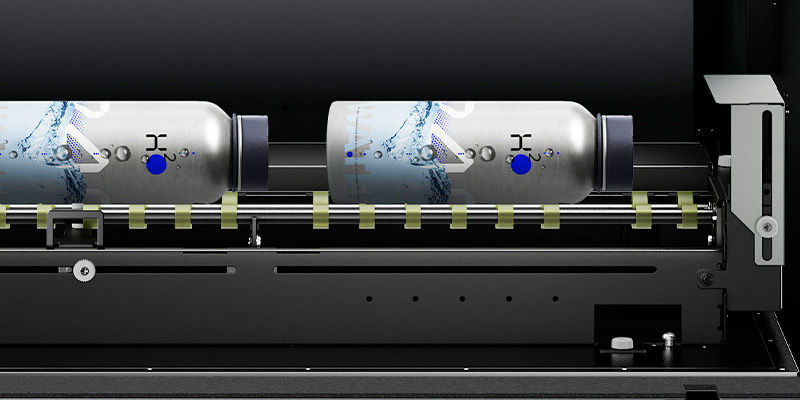

VersaOBJECT MO-240 Rotary

Optional Rotary Rack Accessory

The new optional Rotary Rack attachment for the MO-240 is quick and easy to install and makes printing directly onto bottles and other cylindrical objects easier than ever.

VersaOBJECT MO-240 Rotary

Productivity Features


Broad Substrate Compatibility
Print onto a virtually limitless range of flexible and rigid substrates and objects.
Efficient and Fluid Workflows
Produce your work, your way with flexible job-management features.
Professional Color Management
Match your customers' color with ease thanks to advanced RIP features.
Printing Distance Mode
Print directly onto irregular or curved objects with a high degree of accuracy.
Time Saving Turnaround
Switch to digital direct-to-object printing and eliminate long set-up and finishing times.
Texture Libraries
Add extra expression to your prints easily with a library full of exciting printable textures.
Mobile Cost Tracking
Track ink usage and more in real time with the Roland DG Connect mobile app.
Fast Set-up and Ease of Use
Plug in and start working immediately thanks to Roland DG’s user-friendly interface.

Powerful Software Included

versaobjectmohighdefinitionmob

PrintAutoMate*

This specialized software lets you efficiently map print output onto objects in a printing jig, helping you automate your print workflow and streamline object customization.

*PrintAutoMate is an optional expansion to the Roland DG Connect app, included with the Premium plan.
Learn More
versaobjectmohighproductivitymob

VersaWorks 6 RIP Software

In addition to providing high-speed RIP functionality, VersaWorks 6 software includes a wide selection of productivity-boosting features for the MO-240, such as automatic special color generation and variable data printing.

Learn More
versaobjectmoflexibilitymob

Roland DG Connect App

Reduce downtime and improve efficiency with a machine monitoring assistant that gives you a clear picture of your print operation while running your device at optimum performance.

Learn More
VersaOBJECT MO-240 logo
VersaOBJECT MO-240 logo

Create Value with Direct Printing

VersaOBJECT is a comprehensive family of products that enables professionals to print directly onto 3D objects and substrates made from a wide variety of materials.

LEARN MORE
2 Year Warranty
2 Year Warranty

Roland DGA’s Industry-Leading Warranty and Support

Roland DG has provided industry professionals with the highest quality products for more than 40 years, backed by unmatched customer service and support. For even greater peace of mind, every VersaOBJECT MO-240 device is supplied with a Two-Year Trouble-Free Warranty.*

* Registration within 60 days of purchase and exclusive, continuous use of Roland DG approved inks is required to qualify for the second year of warranty coverage.

Additional Information

Expand All | Collapse All


Download Your MO-240 Datasheet

Get your digital guide to all the features, applications, benefits and specifications of the MO-240.

Download Datasheet

Model MO-240
Printing method Piezo ink-jet method
Maximum objects to be printed on Width Max. 25.1 in. (640 mm)
Length Max. 19.2 in. (488 mm)
Thickness Max. 8 in. (204 mm)
Weight Max. 17.6 lb. (8 kg) (When using a vacuum table: max. 8.8 lb. [4 kg])
Printing width/printing length
(width × length) 		Max. 24 in. × 18 in. (610 mm × 458 mm)
Ink
 Type ECO-UV (EUV5P) 750 ml pouch
Colors Eight colors (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, Red)
Seven colors (Cyan, Magenta, Yellow, Black, White, Orange, Red) and Primer
Seven colors (Cyan, Magenta, Yellow, Black, Gloss, White, Red) and Primer
Seven colors (Cyan, Magenta, Yellow, Black, White, Orange, Red）
Six colors (Cyan, Magenta, Yellow, Black, Gloss, White) and Primer
Six colors (Cyan, Magenta, Yellow, Black, Gloss, and White）
Four colors (Cyan, Magenta, Yellow, Black)
Ink-curing unit
Built-in UV-LED lamp
Printing resolution (dots per inch) Max. 1,200 dpi
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Power requirements 100–240 Va.c. 50/60 Hz 3.5A
Power consumption
 During operation Approx. 290 W
Sleep mode Approx. 70 W
Acoustic noise level
 During operation 60 dB (A) or less
During standby 49 dB (A) or less
Dimensions (width x depth x height) 63.1 in. × 49.9 in. × 30.0 in. (1,601 mm × 1,267 mm × 760 mm)
Weight 466 lb. (211 kg)
Environment During operation(*1) Temperature: 68 to 89.6 °F (20 to 32 °C), Humidity: 35 to 80 %RH (no condensation)
Not operating Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 %RH (no condensation)
Included items Power cord, cleaning liquid, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect) etc.
*1 Operating environment (Use the machine in an operating environment within these ranges.)
