TrueVISNEW LG & MG Series Professional UV Printer/Cutters
-
MSRP
LG-640:
Limited time only NOW $21,995 US*
WAS$27,995 US*LG-540:
Limited time only NOW $23,995 US*
WAS$25,995 US*LG-300:
Limited time only NOW $19,995 US*
WAS$21,495 US*MG-640:
Limited time only NOW $18,495 US*
WAS$19,995 US*MG-300
Get Promo
$15,995 US** Promotion valid through 12/23/2024. See promo page for terms and conditions.
-
LEASE PRICE
LG-640:
Limited time only NOW $446 US**
WAS$568 US**LG-540:
Limited time only NOW $487 US**
WAS$528 US**LG-300:
Limited time only NOW $406 US**
WAS$436 US**MG-640:
Limited time only NOW $375 US**
WAS$406 US**MG-300
Apply Now
$325 US**
** For 60 months, OAC

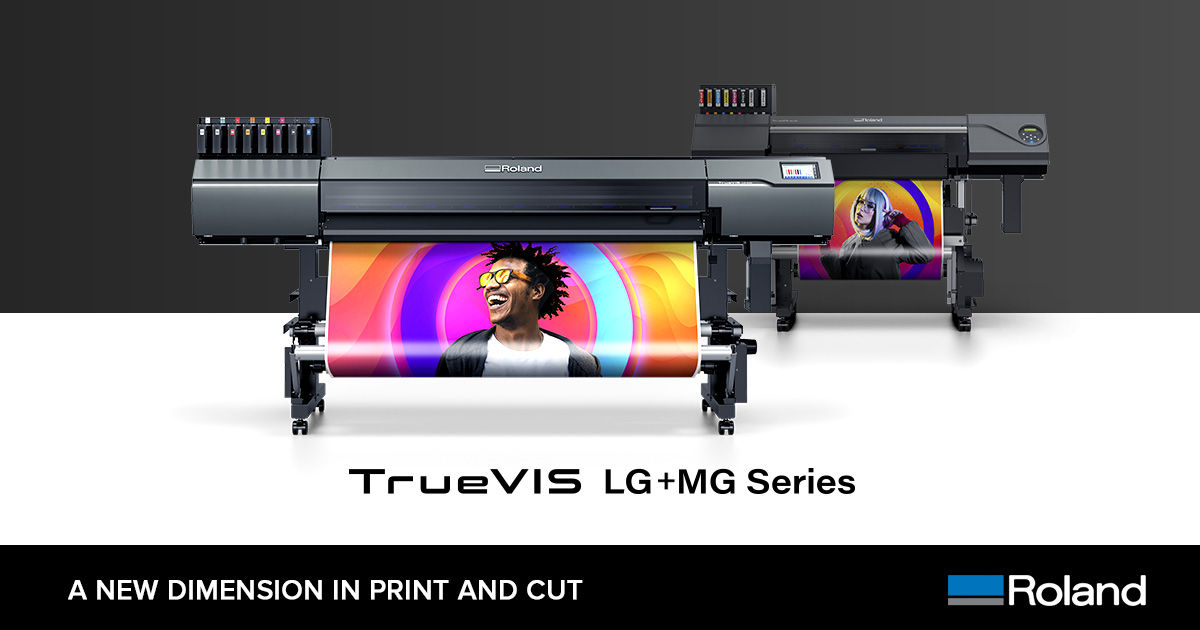

The TrueVIS LG and MG series combines the flexibility of print and cut, the benefits of UV-LED printing and TrueVIS heritage, adding a new dimension to graphics printing.
- High-definition output
- Specialty printing for textures and effects
- Broad media compatibility
- High-density white ink
- Fast-drying prints for quick turnaround and finishing
WINNER
Keypoint Intelligence BLI Pick Award
UV Print-and-Cut Solutions
Take Print and Cut Further
TrueVIS is synonymous with industry-leading print-and-cut machines. Enhance your capabilities with the added power of premium-quality UV-LED printing technology and specialty effects capabilities to offer your customers even more products.
Ultimate Print Expression
The combination of ultra high-definition print technology and specially formulated UV ink lets you accurately reproduce colors in a wide color gamut.
Certified for Commercial-Grade Type II Wall Coverings
Roland DG EUV5 inks have met industry-standard Type II certifications for popular non-PVC wall covering materials*, ideal for commercial and hospitality applications.
* EUV5 ink has passed commercial-grade requirements on specific materials. For Type II certifications, testing is required on each individual material. Inquire to learn more about which materials are certified for your application.
GREENGUARD Gold
ECO-UV5 inks are GREENGUARD Gold certified, meaning they meet strict standards of low chemical emissions, making them ideal for indoor applications.
LG SeriesHigh-performance Professional Features
MG SeriesCustom Professional Features
Powerful Software Included
VersaWorks 6 included, letting you produce print-and-cut output in a simple workflow.
Low Running Cost

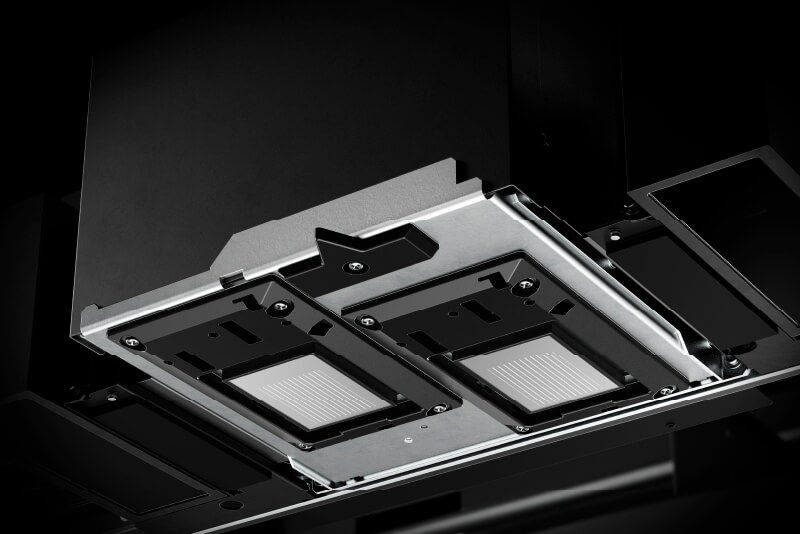

Long-life printheads and ink-clogging prevention ensure sustained quality.
Sheet Perforated Cut
Separate individual jobs without cutting the backing sheet for unattended long runs.
Mobile Cost Tracking
Track ink usage and more in real time with the Roland DG Connect mobile app.
Professional Color Management
Match your customers' color with ease thanks to advanced RIP features.
ICC Profiles
Access Roland DG's library of ICC profiles and find hundreds of profiles to match your needs.

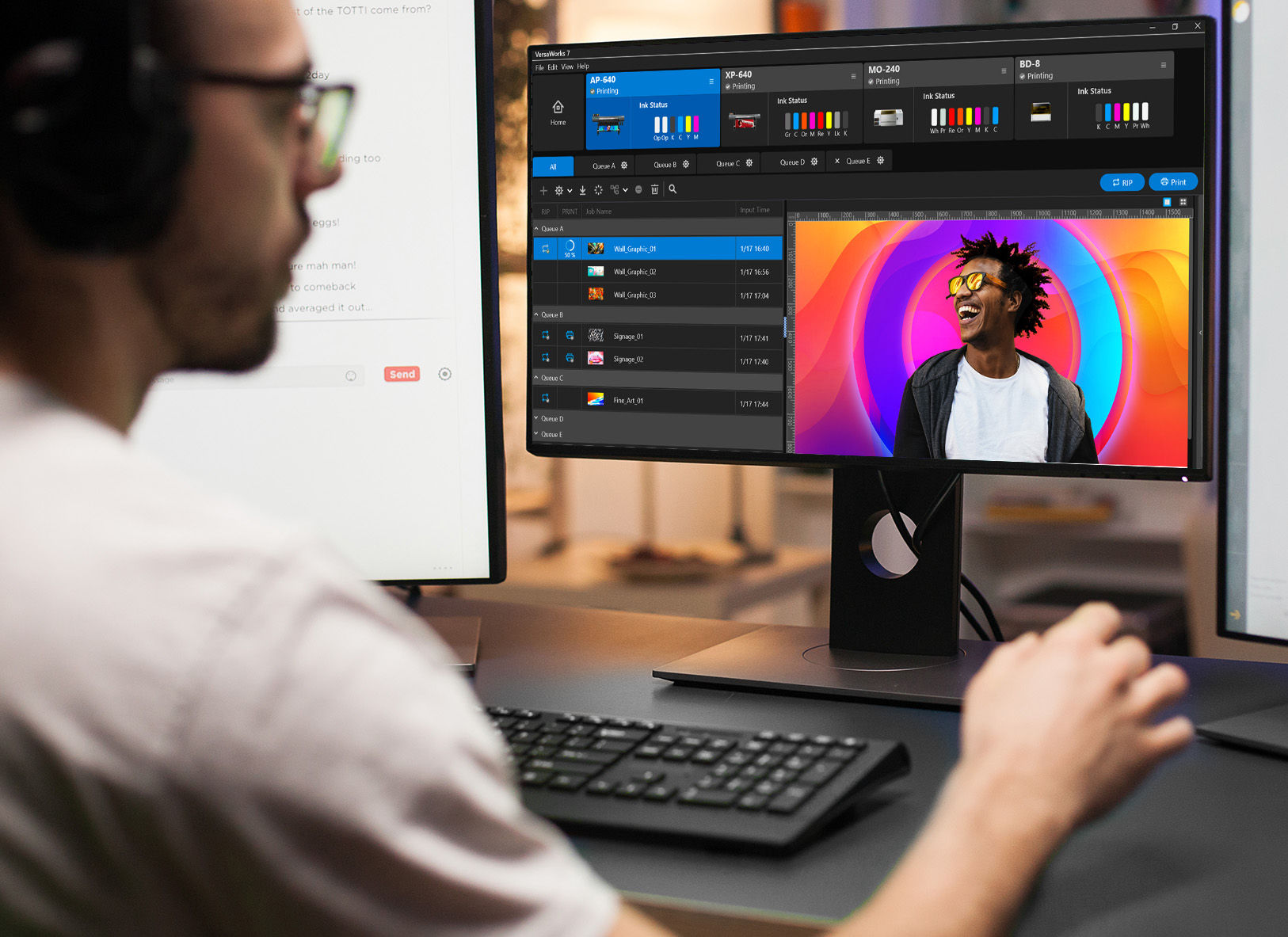

Included VersaWorks 6
RIP Software
RIP Software
The latest edition offers powerful new 64-bit processing and RIP capabilities, plus easy, nesting, cropping, tiling and other features from the world’s most popular RIP software.
- HARLEQUIN RIP dual core engine and 64-bit native processing for enhanced speed and file handling.
- Variable data options for printing multiple images and text onto media in a single print run.
- UV post cure within the RIP and auto-generate White and Gloss layers directly in the RIP with Special Color Plate Generation.
- Create cut data directly in VersaWorks 6 by extracting PDF data from your design file to use as a cut line — changing vector data into cut line data, merging multiple cut lines together, creating perf cut lines, and other intuitive features.
- Easy new drag-and-drop interface allows you to quickly add jobs to the print queue.
- Create color consistency with select Roland DG devices— print, scan and transfer color values.
- Rotate, set spacing, and maintain clip position within the RIP to give you more control when printing graphics and applying Gloss ink effects.
Roland DG Connect App
For Everything Creative
Innovative app serves as a machine-monitoring "assistant," reducing downtime, improving work efficiency, and providing you with a detailed understanding of your entire print operation to optimize overall performance.
The professional's choice for maximizing brand consistency, producing the highest quality output, and building businesses, award-winning TrueVIS printers and printer/cutters are now available in a variety of models and print production solutions to suit your specific needs. TrueVIS LG and MG series UV printer/cutters are designed for passionate print professionals like you, who seek the quality, reliability, and versatility needed to achieve new levels of success.
Roland DGA’s Industry-Leading Warranty and Support
Roland DG has provided industry professionals with the highest quality products for more than 40 years, backed by unmatched customer service and support. For even greater peace of mind, every TrueVIS LG and MG series device is supplied with a Two-Year Trouble-Free Warranty.*
* Registration within 60 days of purchase and exclusive, continuous use of Roland DG approved inks is required to qualify for the second year of warranty coverage.
Roland DG TrueVIS Care Plus
Extend your warranty coverage through years 3 & 4 and save up to $999 with Roland DG Care PLUS for a low monthly fee when bundled at the time of printer purchase!
Additional Information
Datasheet & Reports

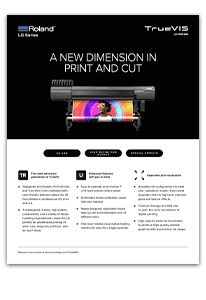

Download Your LG Series Datasheet
Get your digital guide to all the features, applications, benefits and specifications of the UV Printer Cutters.

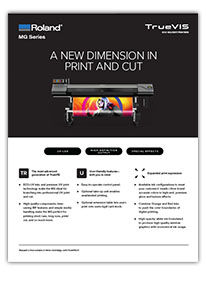

Download DatasheetDownload Your MG Series Datasheet
Get your digital guide to all the features, applications, benefits and specifications of the UV Printer Cutters.
Download DatasheetLG Series Specifications
Model | LG-640 | LG-540 | LG-300 | ||||
Printing method | Piezo ink-jet method | ||||||
Media | Width | 13.2 to 64 in. |
11.7 to 54 in. |
7.2 to 30 in. |
|||
Thickness |
Max. 39.3 mil (1.0 mm) with liner, for printing Max. 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting |
||||||
Roll outer diameter | Max. 9.8 in. (250 mm) |
||||||
Roll weight | Max. 99 lb. (45 kg) | Max. 77 lb. (35 kg) | Max. 66 lb. (30 kg) | ||||
Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | ||||||
Printing / cutting width 1 | Max. 62.9 in. (1600 mm) | Max. 52.9 in. (1346 mm) | Max. 28.9 in. (736 mm) | ||||
Ink |
Type | ECO-UV (EUV5P) 750ml pouch | |||||
Colors |
Eight colors (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, and Red) Seven colors (Cyan, Magenta, Yellow, Black, Gloss, White, and Red) and Primer Seven colors (Cyan, Magenta, Yellow, Black, White, Orange, and Red) and Primer Seven colors (Cyan, Magenta, Yellow, Black, White, Orange, and Red) Six colors (Cyan, Magenta, Yellow, Black, Gloss, and White) and Primer Six colors (Cyan, Magenta, Yellow, Black, Gloss, and White) Four colors (Cyan, Magenta, Yellow, and Black) |
||||||
Ink curing unit | Built-in UV-LED lamp | ||||||
Print resolution (dots per inch) | Max. 1200 dpi | ||||||
Print Speeds |
LG-640 343 sqft/hr at 720 × 600 dpi LG-540 315 sqft/hr at 720 × 600 dpi LG-300 232 sqft/hr at 720 × 600 dpi |
||||||
Cutting speed | 0.39 to 11.8 in./s |
||||||
Blade force 2 | 30 to 500 gf | ||||||
Blade | Type | Roland CAMM-1 series blade | |||||
Offset | 0 to 59 mil (0 to 1.500 mm) | ||||||
Software resolution (when cutting) | 0.98 mil/step (0.025 mm/step) | ||||||
Media heating system 3 | Front heater set temperature: 86 to 131 °F (30 to 55 ℃) | ||||||
Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||||
Power-saving function | Automatic sleep feature | ||||||
Power requirements | 100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A | 100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A | 100-120/220-240 Va.c. 50/60 Hz 5.7/2.6 A | ||||
Power consumption | During operation | Approx. 800 W | Approx. 800 W | Approx. 650 W | |||
Sleep mode | Approx. 85 W | ||||||
Acoustic noise level | During operation |
63 dB (A) or less | |||||
During standby | 58 dB (A) or less | ||||||
Dimensions (with stand) | 114.3 in. x 29.5 in. x 55.6 in. |
104.3 in. x 29.5 in. x 55.6 in. |
80.3 in. x 29.5 in. x 55.6 in. |
||||
Weight (with stand) | 461 lb. (209 kg) | 437 lb. (198 kg) | 371 lb. (168 kg) | ||||

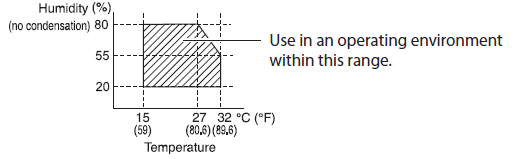

Environment | During operation 4 | Temperature : 68 to 89.6 °F ( 20 to 32 ℃), Humidity: 35 to 80 % RH (no condensation) | |||||
Not operating | Temperature : 41 to 104 °F (5 to 40 ℃), Humidity: 20 to 80 % RH (no condensation) |
MG Series Specifications
Model | MG-640 | MG-300 | |||||
Printing method | Piezo ink-jet method | ||||||
Media | Width | 8.3 to 64 in. |
7.2 to 30 in. |
||||
Thickness |
Max. 39.3 mil (1.0 mm) with liner, for printing Max. 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting |
||||||
Roll outer diameter | Max. 8.2 in. (210 mm) |
||||||
Roll weight | Max. 88 lb. (40 kg) | Max. 55 lb. (25 kg) | |||||
Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | ||||||
Printing / cutting width 1 | Max. 62.9 in. (1600 mm) | Max. 28.9 in. (736 mm) | |||||
Ink |
Type |
ECO-UV (EUV5) 220 ml cartridge (white) ECO-UVS 220 ml cartridge (cyan, magenta, yellow, black, white) ECO-UV (EUV5) 500 ml cartridge (cyan, magenta, yellow, black, red, orange, gloss, primer) |
|||||
Colors |
Eight colors (cyan, magenta, yellow, black, red, orange, white, gloss) Seven colors (cyan, magenta, yellow, black, red, orange, white) Seven colors(cyan, magenta, yellow, black, red, orange, white) and primer Seven colors(cyan, magenta, yellow, black, red, white, gloss) and primer Six colors(cyan, magenta, yellow, black, white, gloss) and primer Six colors(cyan, magenta, yellow, black, white, gloss) Four colors(cyan, magenta, yellow, black) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Or and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Or and Gl) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Pr and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Pr and Gl) |
||||||
Ink curing unit | Built-in UV-LED lamp | ||||||
Print resolution (dots per inch) | Max. 1440 dpi |
||||||
Print Speeds |
MG-640: 150 sqft/hr at 720 × 720 dpi MG-300: 120 sqft/hr at 720 × 720 dpi |
||||||
Cutting speed | 0.39 to 11.8 in./s |
||||||
Blade force 2 | 30 to 500 gf | ||||||
Blade | Type | Roland CAMM-1 series blade | |||||
Offset | 0 to 59 mil (0 to 1.500 mm) | ||||||
Software resolution (when cutting) | 0.98 mil/step (0.025 mm/step) | ||||||
Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||||
Power-saving function | Automatic sleep feature | ||||||
Power requirements | 100-240 Va.c. 50/60Hz 2.8 A | 100-240 Va.c. 50/60Hz 2.7 A | |||||
Power consumption | During operation | Approx. 250 W | Approx. 240 W | ||||
Sleep mode | 40 W | ||||||
Acoustic noise level | During operation |
63 dB (A) or less | |||||
During standby | 53 dB (A) or less | ||||||
Dimensions (with stand) | 111 [W] x 31 [D] x
52 [H] in. |
77 [W] x 31 [D] x 52 [H] in. |
|||||
Weight (with stand) | 360 lb. (163 kg) | 276 lb. (125 kg) | |||||
Environment | During operation 3 | Temperature: 59 to 89.6 °F (15 to 32 °C), fumidity: 20 to 80 %RH (no condensation) | |||||
Not operating | Temperature : 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation) |
