IU-1000F UV-LED High-Productivity Flatbed Printer
-
MSRP
$149,995 US*
*U.S. only. For Canada, Latin America and Caribbean pricing, please contact an Authorized Roland DGA Dealer in your area. Price subject to change.
-
LEASE PRICE
$3,045 US*
Apply Now
** For 60 months, OAC
Financial Services

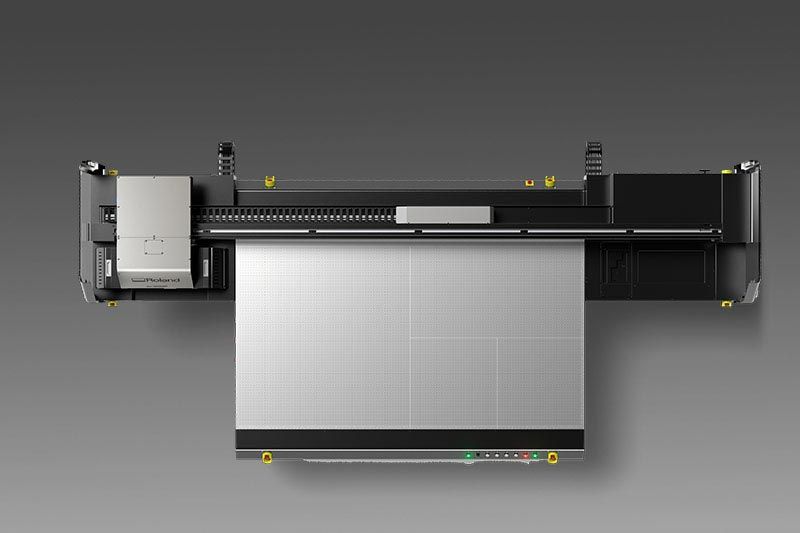

Quickly expand your output and rapidly grow the profitability of your sign business. Print high-quality graphics at incredible speeds directly onto 4’ x 8’ media boards with a 4.3-inch clearance.
- Rapid, wide-pass, edge-to-edge printing on coroplast, acrylic, PETG, PVC board, foam board, wood, aluminum plate and so much more without loss of quality
- Print 35 boards per hour and 280 boards a day with twelve printheads in a staggered formation— approximately 1,248.6 sq. ft. per hour in 4-color draft mode*
- High-density, high-adhesion UV inks offer exceptional results on metal, glass, acrylic and more— print with industry-leading, high-opacity White ink with CMYK in a single pass
The Ultimate in High-Volume,
High-Impact Print Production

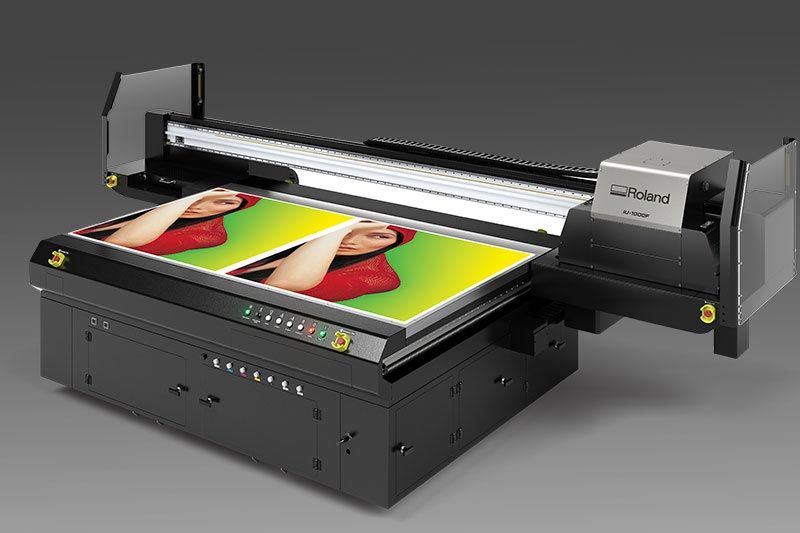

Built tough for non-stop print production, you can build your sign and graphics business around the IU-1000F large format flatbed printer. Featuring high-resolution printing with banding prevention, twelve print heads, 1,280 nozzles per unit, and image results up-to 635 x 1,800 dpi, it offers fast, high-volume print production with high-impact graphic results.
Compatible with hundreds of substrates, ramp-up your UV printing speed, volume and profit.
TRADESHOW DISPLAYS
SIGNAGE
CUSTOM DIE-CUT SIGNS
ACRYLIC, GLASS AND CERAMICS
DÉCOR AND UNIQUE PRODUCTS
LEATHER, FABRIC AND CANVAS
Print Speed and Quality
to Suit Your Production Needs
Featuring twelve high-performance inkjet printheads in a staggered three-row arrangement, the IU-1000F prints edge-to-edge on thin or thick boards. Meet fast turnaround times or produce high-end signs and displays with multiple speed and performance options.
AN HOUR
DRAFT MODE
(4-COLOR)
High-speed quality results for large format sign applications.
AN HOUR
STANDARD
MODE
Offers crisp and clear image definition on different media.
AN HOUR
QUALITY
MODE
For high end applications— achieve near-photographic quality results.
AN HOUR
DUAL WHITE INK
(STANDARD MODE)
Print CMYK and White layers at the same time for clear, consistent results on all substrates.
All print speeds displayed above are based on average print test results. Actual results may vary.
Ink Practicality, Versatility and Creativity
With the combination of White, Gloss, and Primer inks in addition to CMYK process colors, the IU-1000F offers high-end results on hundreds of applications.
- Print high-opacity White ink with CMYK in a single pass to make colors really stand-out on dark and transparent media
- Get excellent results on challenging substrates by prepping with Primer ink before printing your graphics
- Add Gloss textures, raised embossed effects, and spot varnish for stunning finishes
to Increase Production and Profit

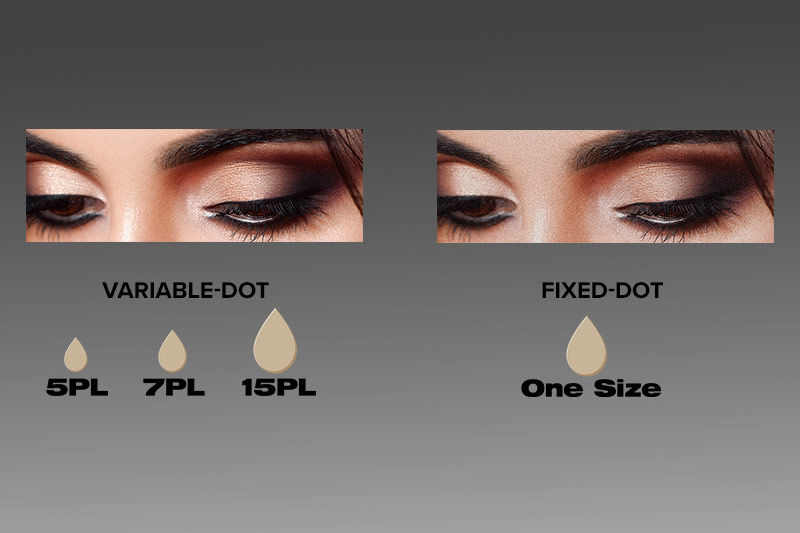

Variable dot technology simultaneously fires droplets of 5 pl (picoliters), 7 pl, and 15 pl, to create high-definition images, smooth gradations, and solid color output.
Low-Running Costs
Reduce flatbed running costs with small droplet printing that limits ink consumption and UV-LED lamps that save energy and lengthen lamp life.
and Print Stability

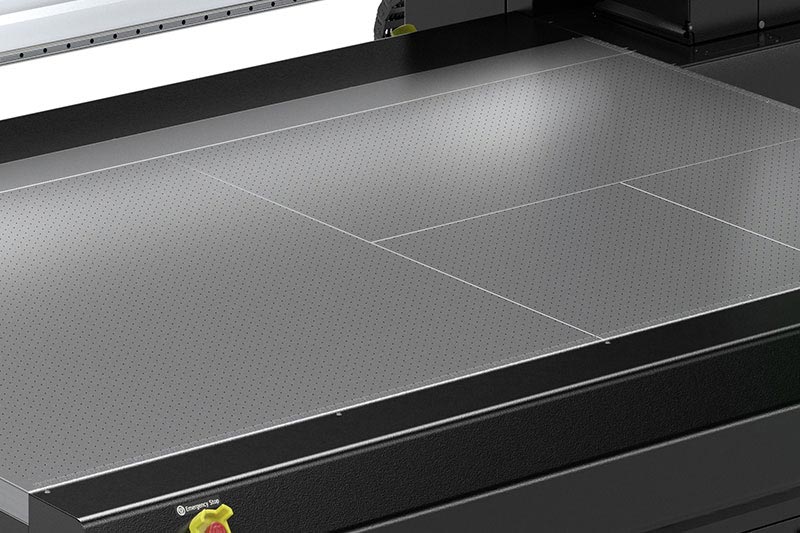

A variable zone vacuum can be applied to four different sections of the flatbed to maximize air suction in specific areas— enabling easy media loading and print stability when handling media.

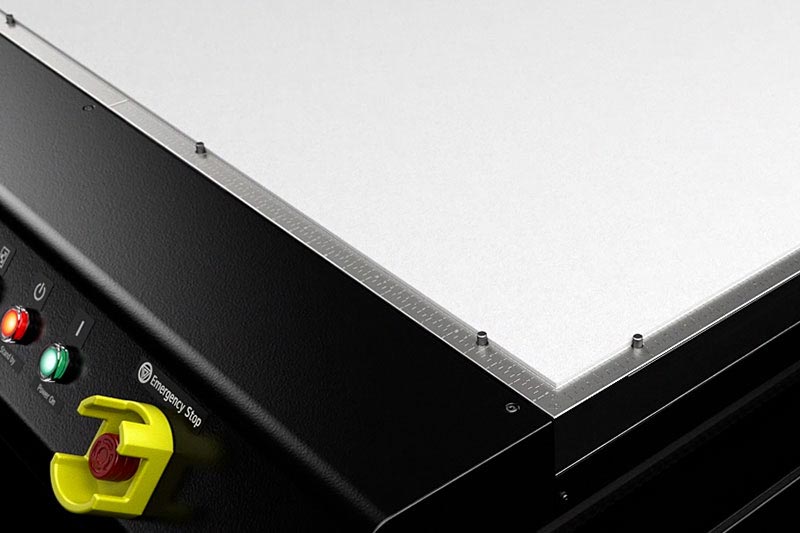

Get consistent media placement of multiple boards and double-sided panels with media alignment pins in the corners of the flatbed that pop-up at the touch-of-a-button for automatic print alignment to the origin point.
Productivity Features
|
Easily manage your machines movements, speed, voltage, head cleaning and more from your desktop with the Roland DG Print Control Center. |
|
Includes a premium RIP software package with intuitive tiling, scaling, cropping and many more essential features. |
|
Offers a smooth operation and performance with one-touch, automated daily printhead cleaning— avoid losing valuable print time. |
|
Low odor, low chemical emission inks and a “human proximity sensor” create a safe machine environment for flatbed operators. |
|
Features a media ionizer to reduce static and ensure ink-firing accuracy on materials like corrugated boards that generate a lot of static. |
|
Print one large board or print on multiple boards at the same time with the production versatility of the IU-1000F. |
Built to Build Your Business with Industry Best Warranty, Service and Support
Roland DGA offers a higher standard of machine reliability, combined with a superior level of service and support. Your IU-1000F UV-LED industrial flatbed printer is also supplied with a Two-Year Trouble-Free Warranty to give you added machine security and peace-of-mind.
* Registration within 60 days of purchase and exclusive, continuous use of Roland DG approved inks is required to qualify for the second year of warranty coverage.
Additional Information
Sample Request
To receive a free print sample from the IU-1000F , complete the form below and click Submit.
Specifications
| Printing method | Piezo ink-jet method | |
|---|---|---|
| Media | Maximum size | 98.8 × 51.5 in. (2,510 × 1,310 mm) |
| Maximum thickness | 4.33 in. (110 mm) | |
| Maximum weight | 99 lbs/m2 (45 kg/m2) | |
| Maximum printing area | 98.4 (width) × 51.1 (length) in. (2,500 × 1,300 mm) | |
| Ink | Type | UV Curable Ink (UE, US) |
| Color | Six colors (cyan, magenta, yellow, black, white, and gloss) and primer | |
| Ink bottle capacity | CY, MG, YE, BK, GL, PR: 1,000 ml WH: 900 ml (US-WH), 850 ml (UE-WH) |
|
| Ink tank capacity | 2,500 ml per color | |
| Ink curing unit | UV-LED lamp | |
| Print resolution (dots per inch) | Max. 635 × 1,800 dpi | |
| Media vacuum system | Up to four vacuuming areas with adjustable vacuum pressure | |
| Connectivity | USB 3.0 | |
| Power requirements | EMEA 25A 3-phase 400 V NA/JPN 30A 3-phase 220 V |
|
| Dimensions | 189.4 (W) × 86.6 (D) × 62.2 (H) in. (4,812 × 2,200 × 1,580 mm) | |
| Weight | 3,166 lb (1,436 kg) | |
| Environment | Temperature | 59 to 86 °F (15 to 30 °C) |
| Humidity | 40 to 80 % | |
| Included items | USB cable, paper towel, cleaning kit, CD manuals, software installation CD, etc. | |
| Acoustic noise level | 75 dB (A) or less | |
This device is capable of printing on a wide variety of substrates. However, the print quality or the ink adhesion may vary according to the substrate used and it is strongly recommended to test the substrate for compatibility to ensure optimal print results.
| Print control (bundled) |
OS | Windows® 7/10 (64 bit) |
|---|---|---|
| CPU | Intel® Core™ i5, 2 GHz or more | |
| RAM | 8 GB or more | |
| Video card and monitor | A resolution of 1,152 × 854 with 16 bit color or higher | |
| HDD | Install space 1 GB or more Working space 100 GB |
