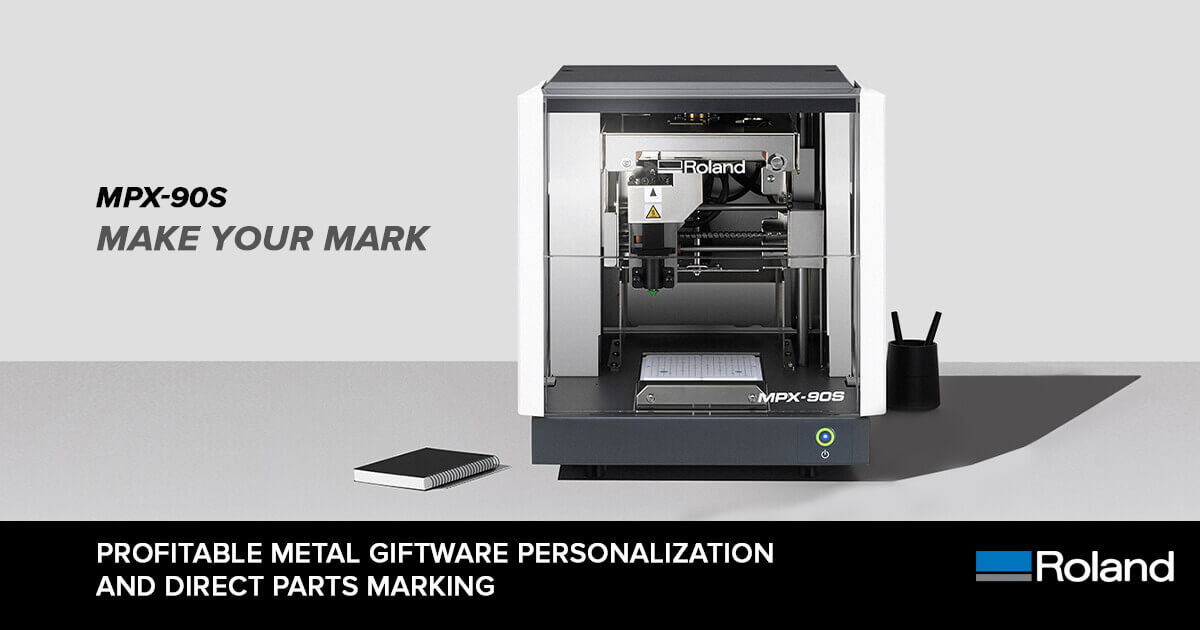

VersaSTUDIO MPX-90S Photo Metal Impact Printer
-
BASE MSRP
NOW $3,495 US*
Get Promo
WAS$3,995 US** Promotion valid through 12/23/2024. See promo page for terms and conditions.
-
* U.S. only. For Canada, Latin America and Caribbean pricing, please call (949) 727-2100, or contact an Authorized Roland DGA Dealer in your area.
Perfect for kiosk and gift shop applications, the new VersaSTUDIO MPX-90S metal impact printer, easy-to-operate solution for personalizing high-value metal items and making them even more unique and profitable.
Personalize Hundreds of Metal Items
MPX-90S personalization options include:
- Pens and business card holders
- Smart devices
- Jewelry
- Sunglasses
- Watches
- Trophy plates
- Dog tags ...and more!
Imprint Photographs, Vector Graphics and Text
A durable diamond-tipped stylus strikes the material with high speed and precision to reproduce the most delicate gradations and finest fonts. The results are exceptional, with detailed graphics and fonts that stand out.

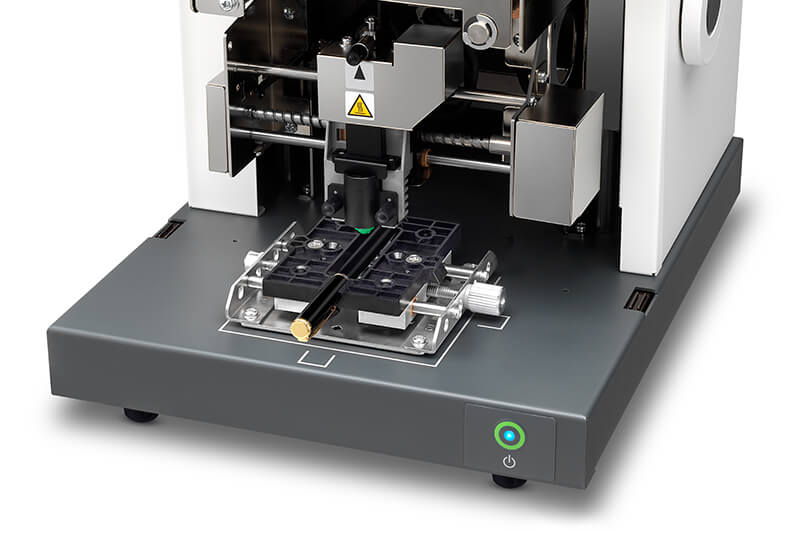

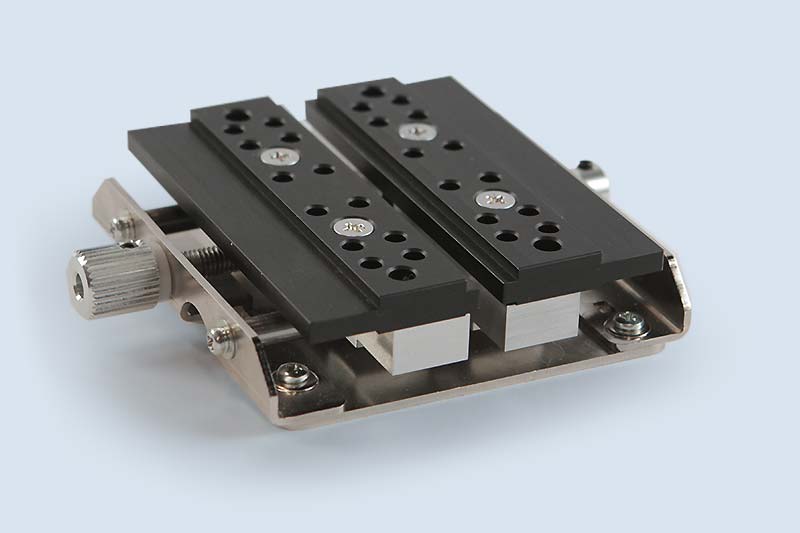

Included Center Vise
When imprinting onto many different items in succession, the fixed center vise allows for quick set-up and personalization of items.

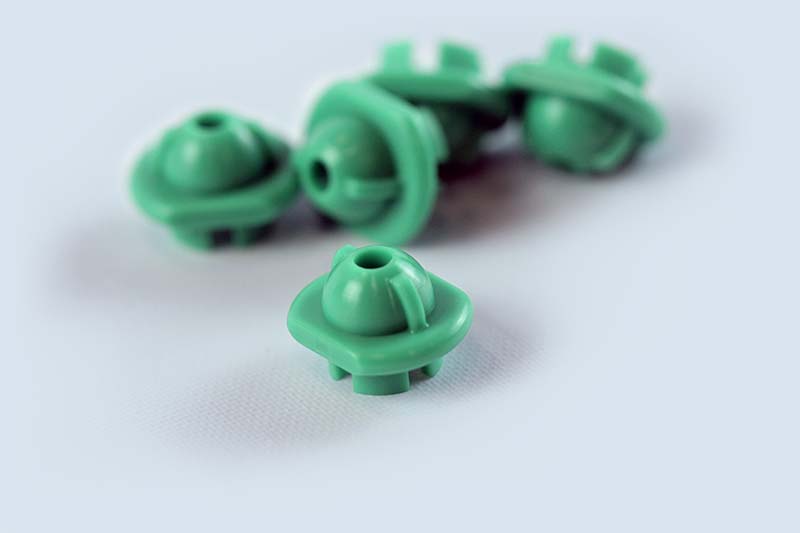

Head Caps
For attaching to the MPX-90S's head unit when imprinting onto curved and flat surfaces, thirty rounded and ten head caps.
More Precision, Less Fuss
Without debris, noise or odor, users can add photo quality detail and complex barcode data to a printable area as small as one square millimeter and as large as 80 millimeters. There's far better accuracy and a lot less clean-up with a MPX-90S photo impact printer.
Other Distinguishing Features
- Diamond-tipped stylus marks silver, copper, platinum, brass, and aluminum up to 200HV
- Includes easy-to-use METAZA Studio software
- Automatic surface detection
- Variable data printing capabilities for applying sequential data
- Compact and fully enclosed – runs quietly and safely in any kiosk, store or lab
Additional Information
Specifications
| Model | MPX-90S | |
|---|---|---|
| Imprintable material | Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, titanium, etc.
(Vickers hardness [HV] of the imprint surface must be 200 or less.) |
|
| Base plate only: | Loadable material size | Max. 3.9 in. (W) X 7.9 in. (L) X 2.8 in. (H) (100 mm (W) X 200 mm (L) X 70 mm (H)) or 7.9 in. X 3.9 in. X 2.8 in. (200 mm (W) X 100 mm (L) X 70 mm (H)) *The above are for when the cover is closed. When the cover is open, there is no limit on how large the material can be, but the imprint area of the material must be placed within the imprint area. |
| Imprint area | Maximum imprintable area | 3.2 in. (W) X 3.2 in. (D) X 2.8 in. (H) 80 mm (W) X 80 mm (D) X 70 mm (H) |
| Recommended imprint area | 2.0 in. (W) X 2.0 in. (D) X 2.8 in (H) 50 mm (W) . 50 mm (D) . 70 mm (H) |
|
| Resolution | High resolution | 529 dpi |
| Photo | 353 dpi | |
| Text | 265 dpi | |
| Vector | 1058 dpi | |
| Imprint direction | Unidirectional imprinting or bidirectional imprinting (Selectable with Windows driver) | |
| Imprint speed (Default) | Photo | 2.0 in./sec (50 mm/sec) |
| High resolution/Text | 1.2 in./sec (33 mm/sec) | |
| Vector | 0.94 in./sec (24 mm/sec) | |
| Interface | USB | |
| Power requirements | Dedicated AC adapter | AC 100 to 240 V ±10%, 50/60 Hz |
| Main unit | DC 19 V, 1.2 A | |
| Power consumption | Approx. 21 W | |
| Operating noise | 70 dB (A) or less | |
| Operating temperature | 50 to 86°F (10 to 30°C) | |
| Operating humidity | 35 to 80% (no condensation) | |
| External dimensions | 11.3 in. (W) x 15.1 in. (D) x 12.2 in. (H) 286 mm (W) x 383 mm (D) x 308 mm (H) |
|
